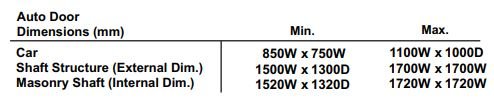

Home Lift
Hydraulic
- Power- 1 Phase/ 3 Phase
- Pit -Min. 100mm.
- Overhead - Min. 2800mm
- Car Travel - Max. 10 meters
- Speed - Max. 0.5 m/s
Gearless
- Power- 1 Phase / 3 Phase
- Pit -Min. 200mm.
- Overhead - Min. 3000mm
- Car Travel - Max. 10 meters
- Speed - Max. 0.5 m/s

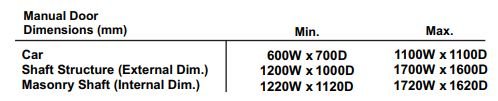

Shaft and shaft structure dimensions depend on access number and layout.

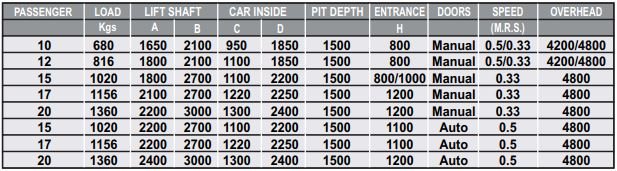

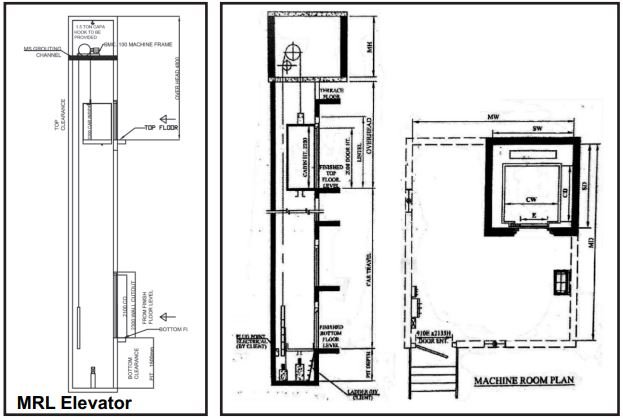

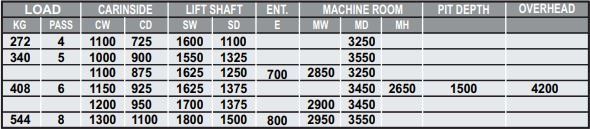

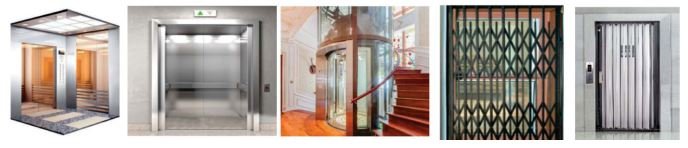

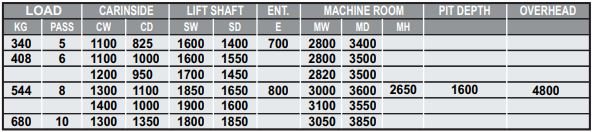

Passanger Elevator
Auto Door
Manual Door

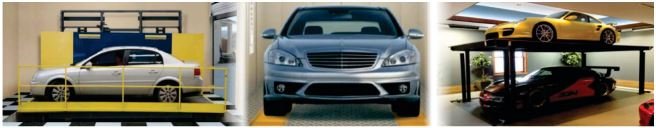

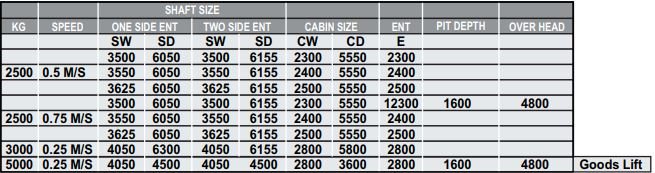

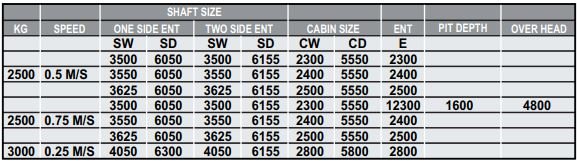

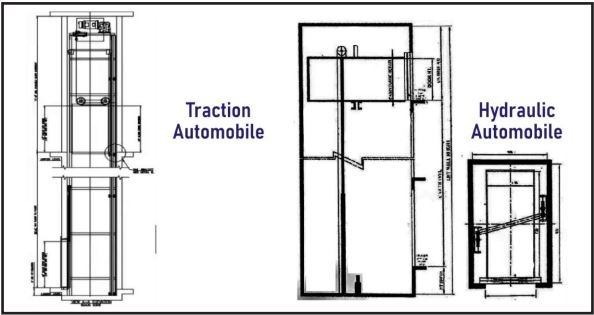

Car Elevator
Hydraulic Automobile
Car Traction Automobile

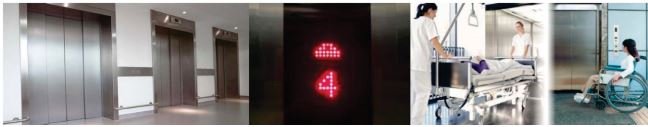

Hospital Elevator
Hospital Lift

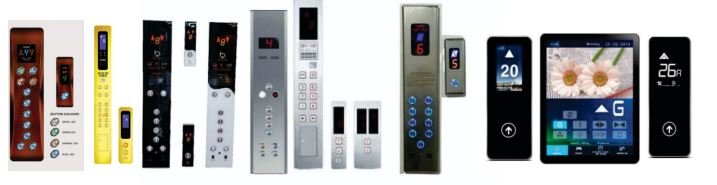

Operating Panels
Technical Specification and Features:
- Face Plate :- Hair Line #4 inish S.S., Mirror #8 inish S.S
- Gold Mirror Finish S.S.
- Various push button for selection
- Low voltage consumption 12 V.
- Position Indicator :- 7 Segment & arrows.
- Hinge face plate can be opened from Left & Right
Feature
- No of Stop: 30 Stop Full Collective.
- Operations: Regular V3F, Full Collective V3F
- Speed: 0.5 m/sec. to 2m/sec
- On board Seven Segment Display.
- All the Input and Output are Opto-isolated and available in both
12VDC and 24VDC.
- All the Input and Output are carrying LED indication on board.
An error code is displayed on display.
- Each floor can be named by an alphanumeric character (L, RE, F, H, b, o, 0, 1,
2, 3.....)
- 7-segment and signalization outputs are short-circuit protected. In a
short circuit case, the concerned output is shut down until the problem is
removed.
- It also detects the landing lock short at a particular floor.
- PCBs are soldered in a Fully Automatic Pick & Place Robotic Machine,
which removes all human errors.
TECHNICAL SPECIFICATION AND FEATURES ARD
- Battery Voltage 24V, 2 X 12V.
- Naturally air cooled Duty combination LSVF geared elevators from 0.4 m/.s
up to 1.0 m/s
- Door Operator - Any power operated doors or manual entrances.
- Speed during rescure run - 1/12 (4 Hz) of Nominal Elevator speed.
- Maximum distance between loors -11 meter.

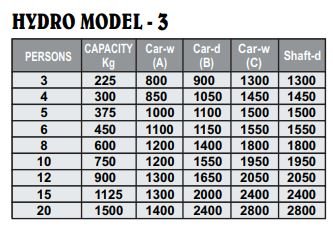

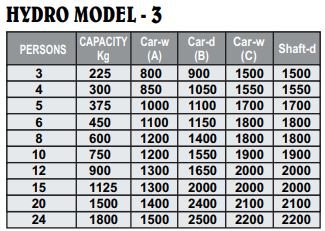

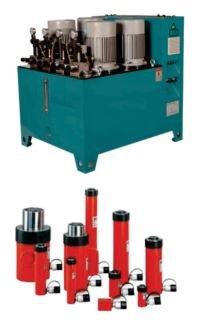

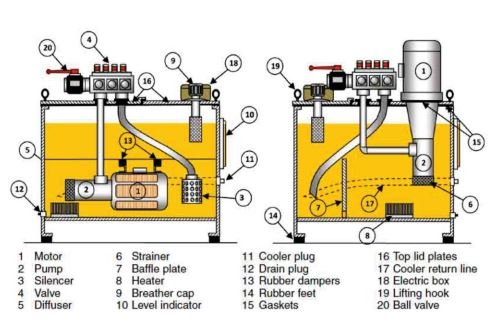

Hydraulic Lift System
Abolition of the superstructure machine
room which allows better utilization of the
built space, saving construction cost, earth
quake & elevation.
Low installation and reduce maintenance
cost in comparison of Traction lift.
Longer useful life becase the lifts system
function in hydraulic oil.
Battery up OR Manual lowering valve if the
electricity is interrupted.
Safety, comfort and low noice level. Simple
and fast installation.
Single time 3 phase power used in Up
direction only, for Down 1 Phase power
used. User power sawing.
Passanger Elvator Machine
Car Elevator Traction Machine
MRL Elevator Machine
GLS PMS Elevator Machine
Speed Governor System
Speed Governor System
Guide Rail
Car Shop
Car Dor Operator
Car Dor Operator
Main Rope
I bolt
